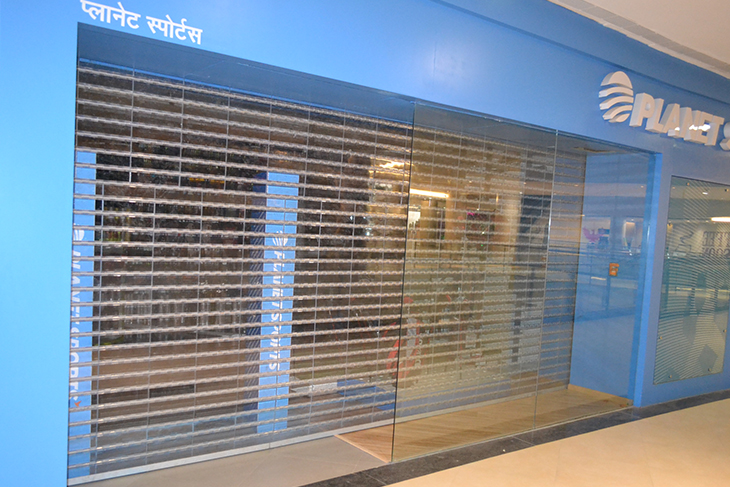

Polycarbonate Shutters

Our range of Polycarbonate Shutters is designed keeping in mind the two-pronged strategy of security and clear view. This way your patrons can see your products and store layout even the the shutters are lowered and you can be at ease about the safety of your store. At Swastik, we also ensure that the shutters are created to add to the aesthetics of your store image.

The idea of Polycarbonate Shutters is to give you are clear view from Inside & Outside. Our shutters are designed for retail outlets, offices, banks, restaurants where the overall look and security is of utmost importance.


  • All of our security shutters guarantee a high level of security against vandalism and theft. Major application are as follows:
  • Shopping Mall
  • Retail Outlets
  • Airports
  • Car Showrooms
  • Street Kiosks
  • Buildings
  • Office Premises

Curtain

The curtain is constructed from 300mm x 100mm Polycarbonate Links interconnected using an Aluminium tube 16mm OD X 2mm thick or Stainless Steel tube 16mm OD x 1.5mm thick. The slats can be perforated to allow ventilation or provide visibility into the premises whilst maintaining the required security. The round profile of the slat gives better stability and strength to the slat and is ideal for large shutters and following as per the standards. Flat profile gives an aesthetic appeal to the shutters and is often used by retail stores. Curtains are made of Mild Steel/Galvanised/Zincalume/ Stainless Steel depending on client requirement and environment factors.

Guides

Vertical guides are formed from pressed steel fabricated as per the size of the door height. These sections are made of Mild Steel/Galvanised Steel of thickness options from 2.5mm or 3mm. The depth of the guides will vary depending on the width of the shutter. The top end of the guide is given a bell mouth shape so as to enable smooth entry for the shutter when in operation.

Endplate

Mild steel 3mm or 2.5mm thick material is re-enf orced with 35mm x 35mm x 5mm thick angle on one or both sides for providing the strength and preventing theft from lifting the door from the base. Locking arrangement is provided on both sides for dual locking assistance.

Brackets

Mild Steel 3mm or 2.5mm thick material is re-enforced with 25x5mm flats. Heavier bracket plates are made as per IS6248 upto 10mm. Height of the bracket plate varies on the shutter height and is custom made for each shutter.

Shaft

Our shafting barrels are made from a seamless steel tube of maximum thickness ranging from 4.5mm-6mm and suitable diameter to counteract deflection. Counter balance springs are used for manual/mechanical operated shutters. Motorised shutters are operated without springs.

Hood Cover

As a standard, we use only 0.9mm Galvanized hood Covers for all types of doors.

Finish

Comes galvanized with non-galvanized parts prime painted as standard. Customers can choose to have a polyester powder coating or spray painted with a range of standard RAL colours.

Mode of Operation

A single phase side motor is used for small to medium sized shutters and a three phase side motor is used for large shutters. These are indirect drive motors which are used without counter balance springs and work seamlessly without any problems. Adjustable limit switches are incorporated to stop the shutter at the end of each travel.

All Motors are equipped with a standard control which includes a open-close-stop bottons on a push button switch or a key switch which gives a restricted access operation on the door. Additionally, a Key Switch or a Remote can be provided as an alternate opening solution.

A remote & sensing edge can be provided as optional add-ons to the motorized door.

Warranty

Warranty for 1 year and parts availability for a minimum of 5 years.
